1.Switch rating: Ui:250V，Ith:5A
2.Mechanical life: >=200,000 cycles
3.Electrical life: >=50,000 cycles
4.Contact resistance: <=50mΩ
5.Insulation resistance: >=100MΩ(500VDC)
6.Dielectric strength: 1,500V，RMS 50Hz，1min

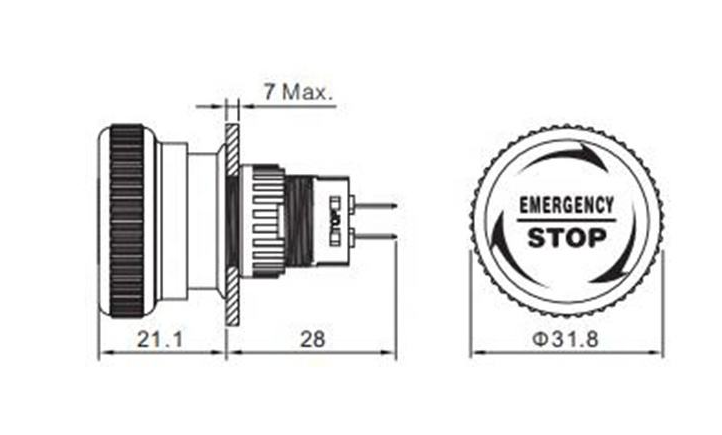

7.Mounting panel thickness: 8mm Max.
8.Actuating Force: About 4N
9.Mounting panel thickness: Over 0.8N.m
10.Front panel protection degree: IP65，IK02
11.Terminal type: Pin terminal
MATERIAL:
1.Contact: Silver alloy
2.Head: Aluminium alloy
3.Body: PC
4.Base: PBT
