In the transportation industry, metal push button switches play a vital role in vehicles and traffic control equipment, including cars, buses, trains, and airplanes. Despite their compact size, they control the operation of a wide range of devices, directly impacting traffic safety and efficiency. If you're considering purchasing metal pushbutton switches for your transportation-related projects, this guide will surely be helpful.

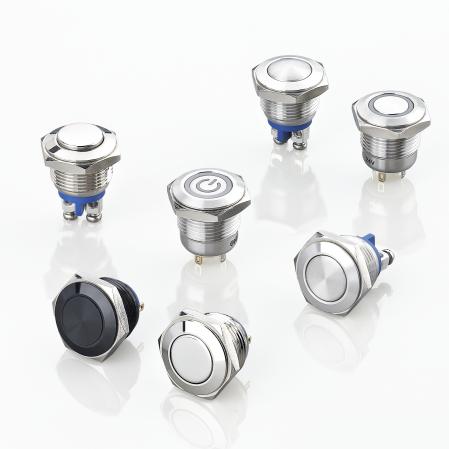

1. Types of Metal Push button Switches
Momentary Push button Switch
|
Simply put, a momentary pushbutton switch completes a circuit when pressed and automatically resets and disconnects the circuit when released. For example, in transportation equipment, a car horn buzzes when pressed and stops when released. This is the operation of a reset push button switch. Similarly, a bus arrival reminder button (which the driver presses to notify passengers of the bus's arrival) resets when released, ready for the next use. This type of push button switch is easy to operate and has a fast response time, making it ideal for applications requiring frequent, short-duration operation. |
.
Latching Push button Switch
|
A latching push button switch differs from a momentary push button switch in that after being pressed once, the button locks in its current state, maintaining the circuit. Pressing the button again causes the switch to spring back, disconnecting the circuit. For example, on some special-purpose vehicles, the hazard light control button remains pressed until the driver turns on the hazard lights, at which point the lights continue flashing. Once the lights stop flashing, the driver must press the button again to turn them off. Latching push button switch are also widely used in some traffic control center equipment. |
Illuminated Push button Switch
|
Illuminated push button switches not only control circuits but also feature indicator lights. These lights illuminate in various states, providing intuitive guidance to the operator. In dimly lit driving environments, certain function buttons on the car dashboard illuminate when pressed, indicating that the function is active, making operation easier for the driver. In traffic signal control boxes, illuminated push button switches allow operators to clearly determine whether the corresponding signal lights are functioning properly, significantly improving work efficiency and accuracy. |

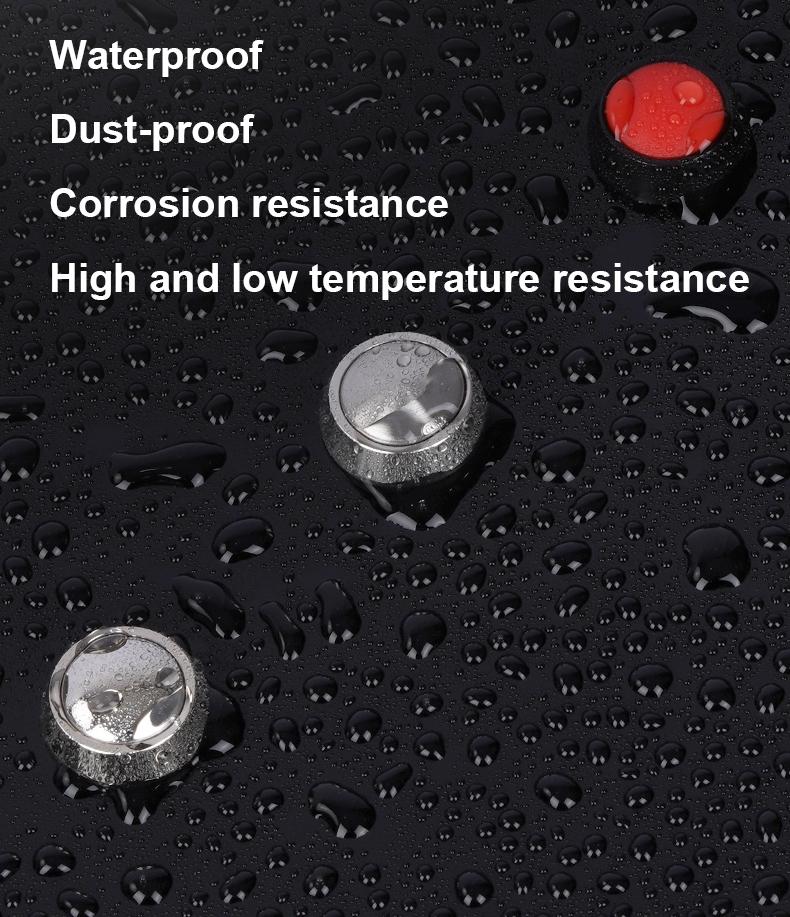

2. Protection Rating
The working environment in the transportation industry is complex and diverse. Contaminants such as dust, rain, and oil can affect the proper operation of push button switches. In such environments, the protection rating is particularly important. Outdoor traffic signal control equipment is often exposed to the elements, making metal pushbutton switches with a protection rating of at least IP65 essential. These switches effectively prevent dust intrusion and can withstand water jets from any direction. In indoor traffic control centers, relatively dry and dust-free push button switches with an IP40 protection rating are sufficient.
3. Mechanical and Electrical Life
Mechanical life refers to the number of presses a pushbutton switch can withstand under normal operating conditions. Electrical life refers to the number of times a switch can open and close normally under specified voltage and current conditions. Pushbutton switches are frequently used in many devices in the transportation industry. For example, various operating buttons on buses may be pressed hundreds or even thousands of times a day. In such cases, pushbutton switches with both mechanical and electrical durability are crucial to reducing replacement frequency and maintenance costs.
4. Product Certification
Reliable metal pushbutton switches hold important certifications to ensure product quality and safety. Common certifications include CE certification (European safety, health, and environmental standards) and UL certification (Underwriters Laboratories). Pushbutton switches with these certifications are essential in the transportation industry, especially in road safety-related equipment.
