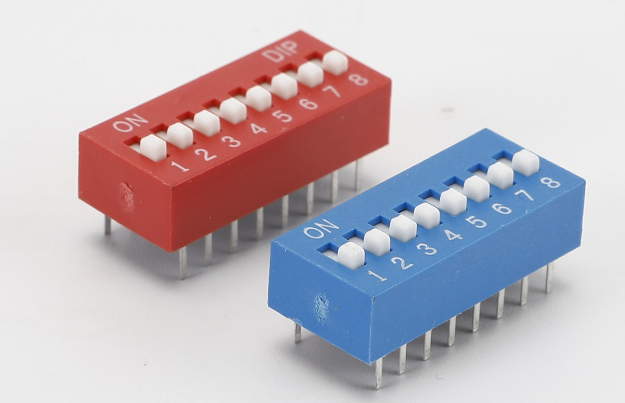

1. Definition and Basic Principle
A DIP switch is a set of manually operated miniature electronic switches. By toggling the small sliders (or levers), each switch can be set to an ON state (usually representing “1”) or an OFF state (usually representing “0”).
When multiple switches are arranged side by side, they form a binary code combination that is commonly used for parameter presetting, address configuration, or function selection in electronic devices.
2. Key Characteristics
Physically adjustable:
No software or programming is required. The configuration is changed simply by manual switching, making it intuitive and reliable.
State retention:
Once set, the switch state remains unchanged until it is manually adjusted again, and it is not affected by power loss.
Simple structure:
Typically consists of a plastic housing, sliding actuators or levers, contacts, and metal pins. This simple design results in low cost and high reliability.
Easy identification:
Clear markings such as “ON/OFF” or “0/1” are usually printed on the switch, allowing the status to be recognized at a glance.
3. Main Types
Mounting Style

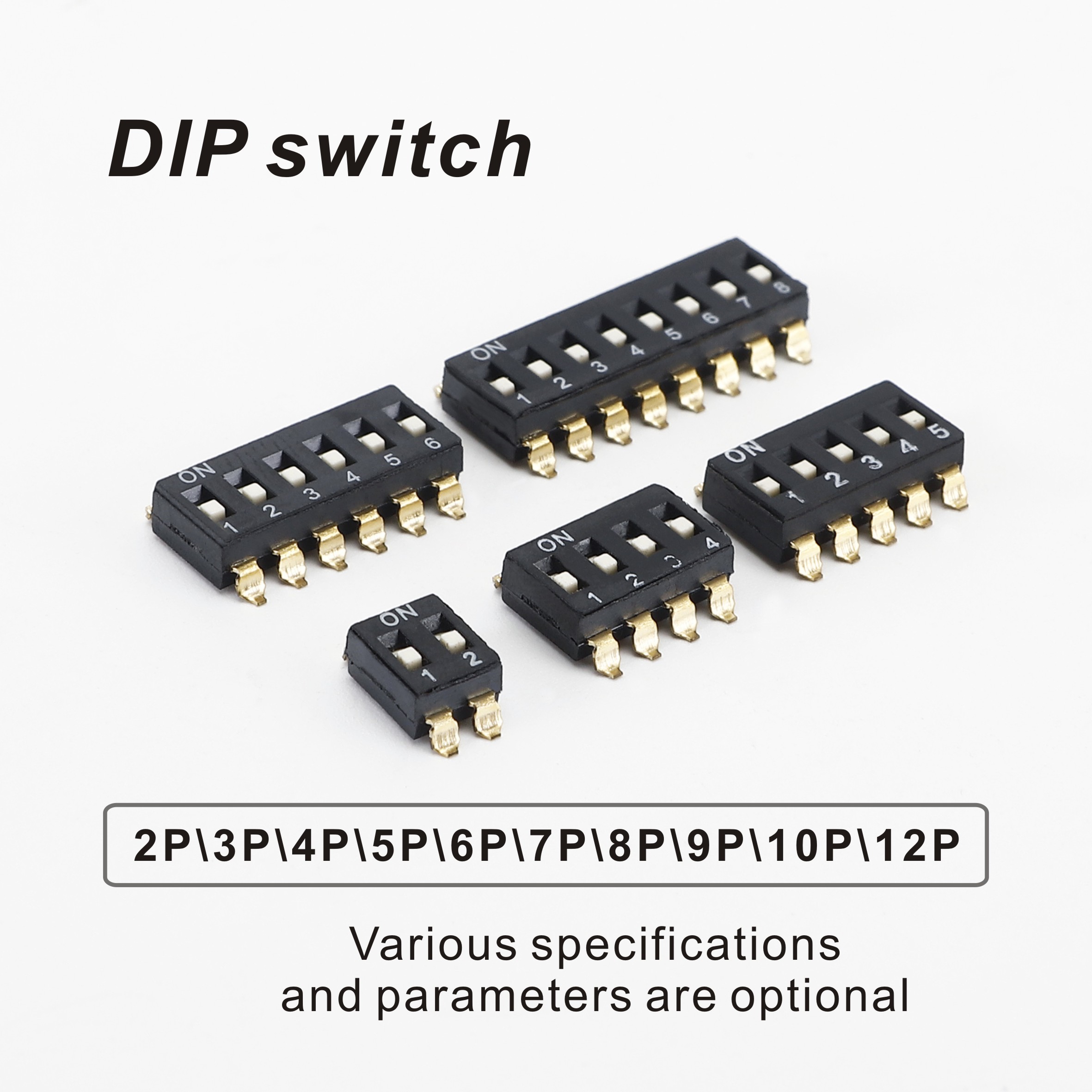

Surface-mount (SMD) type:
Suitable for automated SMT production, compact in size, and widely used in modern, space-constrained devices.
Through-hole (DIP) type:
Soldered into PCB through-holes, offering stronger mechanical stability and commonly used in industrial equipment.
Actuation Direction
Side-actuated (horizontal sliding)
Top-actuated (vertical switching)
Number of Positions
Common configurations include 2-position, 4-position, 8-position, up to 10 positions or more. The number of switches determines the number of possible combinations, equal to 2ⁿ.
4. Technical Specifications
Rated current / voltage:
Generally designed for low-power signal-level applications (e.g., 50 mA, 24 V DC), not for carrying main circuit power.
Contact resistance:
The lower, the better—typically below several tens of milliohms.
Operating temperature:
Commercial-grade: typically -20°C to 70°C; industrial-grade versions offer a wider temperature range.
Mechanical life:
Usually rated for hundreds to several thousand switching cycles.
Application Scenarios
Thanks to their simplicity, stability, and strong resistance to interference, DIP switches are widely used in the following fields:
1. Industrial Automation and Control Systems

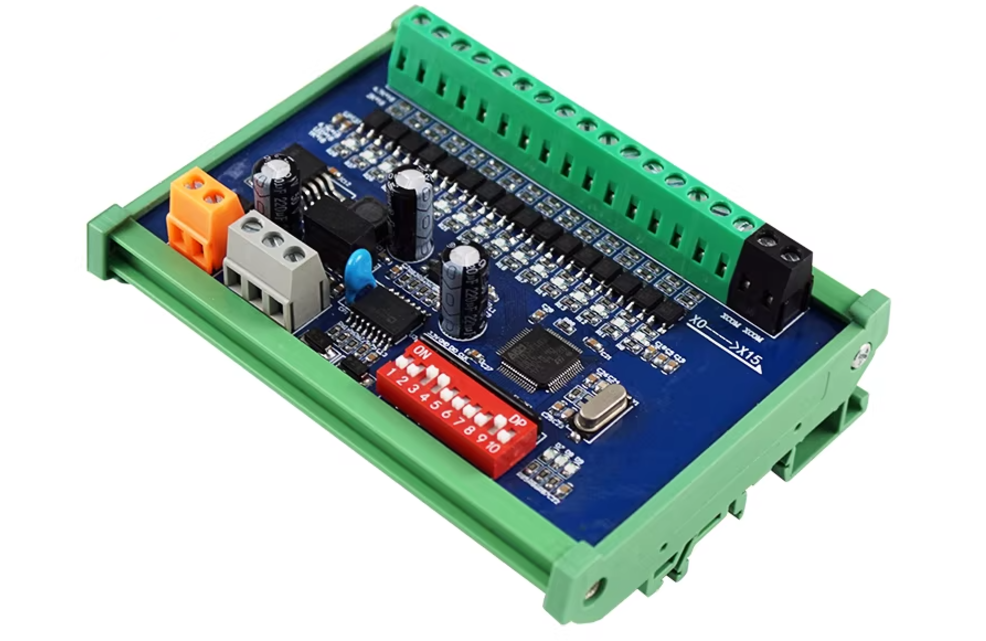

Device address setting:
Assigning unique physical addresses to identical devices (such as PLC slave stations, sensors, inverters, and servo drives) in RS-485, CAN bus, or industrial Ethernet networks to prevent address conflicts.
Operating mode selection:
Configuring run modes (manual/automatic), communication baud rates, input signal types, and other parameters.
2. Network and Communication Equipment
IP address / gateway presetting:
Used in certain network modules, switches, and optical transceivers for basic network configuration.
Router or gateway reset:
Hidden DIP switches on some devices allow restoring factory settings.
3. Consumer Electronics and Computer Hardware
Function configuration:
Used on development boards (such as Arduino or Raspberry Pi expansion boards) to enable or disable specific functions.
Hardware jumpers:
Found on older computer motherboards and hard drives for master/slave configuration.
4. Security and Smart Building Systems
Alarm panel zone configuration:
Setting zone types such as instant alarm, delayed alarm, or 24-hour armed zones.
Intercom unit addressing:
Assigning a unique room number to each indoor unit.
5. Automotive Electronics
Vehicle diagnostic equipment:
Selecting vehicle models or communication protocols.
Aftermarket automotive electronics:
Used for basic configuration in infotainment systems or control modules.
6. Other Applications
Medical devices:
Parameter configuration in certain simple or specialized equipment.
Laboratory instruments:
Selecting measurement ranges or input signal sources.
Market Outlook Analysis
As a mature and fundamental electronic component, the DIP switch market shows the characteristics of “stable existing demand, segmented growth, and a balance of challenges and opportunities.”
1. Positive Factors and Opportunities
A cornerstone of IoT and Industry 4.0:
With the explosive growth of IoT devices, large numbers of low-cost sensors and actuators require a zero-power, highly reliable physical addressing method. DIP switches offer unmatched advantages in terms of cost and reliability in this role.
A complement to software-based configuration:
In scenarios emphasizing cybersecurity and system stability, physical DIP switches provide a hardware-based configuration method that is resistant to hacking and software failures, adding an extra layer of safety redundancy.
Demand for miniaturization and higher performance:
Ongoing demand exists for smaller sizes (e.g., ultra-miniature SMD types), higher reliability (waterproof, dustproof, wide-temperature), and better tactile feedback, driving product upgrades toward high-end and precision designs.
Penetration into emerging application areas:
In smart homes, drones, robotics, and new energy systems, DIP switches remain relevant wherever hardware-level configuration is required.
2. Challenges and Substitution Threats
Impact of software-driven and intelligent configuration:
More devices are now configured via software, mobile apps, or web interfaces using Bluetooth or Wi-Fi. These methods are more flexible and user-friendly, gradually replacing DIP switches in consumer electronics and some industrial products.
Limitations in automated manufacturing:
The final state of a DIP switch often requires manual adjustment, which conflicts with fully automated SMT production lines.
Technological ceiling:
As a mechanical component, DIP switches face inherent limits in physical size and operating life, leaving relatively limited room for technological breakthroughs.
3. Future Trends
Market differentiation:
Low-end market: Highly standardized with intense price competition.
High-end and niche markets: In industrial, automotive, and military applications where reliability is critical, demand for high-performance, environment-resistant DIP switches remains stable with higher profit margins.
Strengthened role as a “hardware safeguard”:
In critical systems, DIP switches will increasingly serve as the last line of hardware configuration defense that cannot be remotely altered.
Integration with electronic switching technologies:
Hybrid solutions may emerge, combining DIP switches with digital interfaces for status detection—offering both the reliability of physical switching and the convenience of digital monitoring.
Conclusion
DIP switches will not disappear rapidly like some traditional components. Instead, the market is transitioning from general-purpose components toward specialized, high-reliability solution components.
In the foreseeable future, DIP switches will continue to play an indispensable role in applications that prioritize reliability, security, low cost, and reduced software complexity. While the overall market size is expected to remain stable, the product structure will continue to optimize, and high value-added, high-performance DIP switches will enjoy stronger growth prospects.
