• LTM-1308
  • LTM-1308

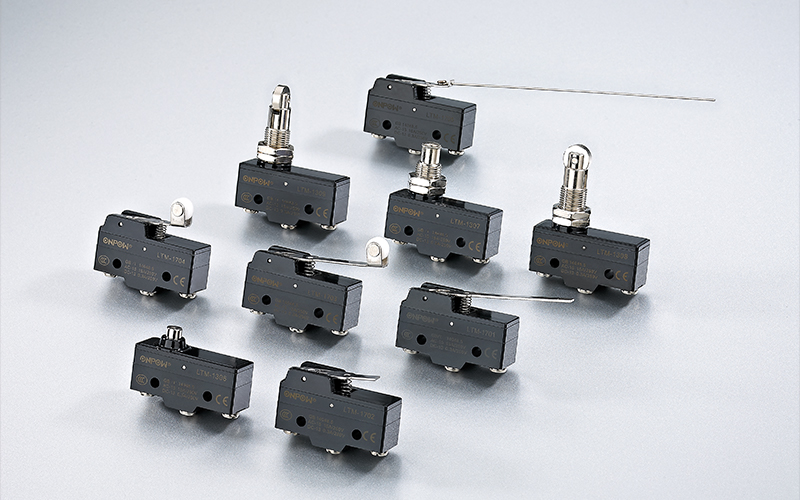

1.  Wide range of actuators; and the operating position can be adjusted

2. High opening and closing capacity (15A)

3. High precision

4. Wide range of operating speed

Important parameter:

1.Operation Speed: 0.01mm to 1m/sec ( Plunger type.

2.Operation Frequency: Mechanical: times/minute      Electrical: times/minute

3.Contact Resistance: 15m Q Max.( in the initial )

4.Insulation Resistance: Over 100MQ ( Below 500VDC )

5.Dieletric Strength:

1000VAC,50/60Hz for 1 minute between discontinuous terminal;

1,500VAC, 50/60Hz for 1minute between current carrying partsand non-current carrying parts;

1,500VAC,50/60Hz for 1minute between Terminal and GND

6.Vibration Resistance: 10 to 50Hz: 1.5mm bi-amplitude

7.Shock Resistance:

Mechanical Durability:1,000m/Sec’( About 100G'S )

Malfunction Durability: 300m/Sec’( About 30G'S )

8.Operation Temperature: In use: -10~+80C (No freezing )

9.Operation Humidity: Below 95%RH

10.Mechanical: Above 10,000,000 operations

11.Electrical: Above 500,000 operations

12.IP Degree: IP65

13.Weight: 22 to 58g


  • Previous:
  • Next:

  • Q1:Does the company supply switches with higher protection levels for use in harsh environments?
    A1:ONPOW’s metal pushbutton switches has certification of international protection level IK10, which means can bear 20 joules impact energy, equals the impact of 5kg items falling from 40cm.Our general waterproof switch is rated at IP67, which means it can be used in the dust and plays a complete protective role, it can be use in about 1M water under normal temperature, and it will not be damaged for 30 minutes.Therefore, for products that need to be used outdoors or in harsh environments, metal pushbutton switches are definitely your best choice.

    Q2:I can’t find the product on your catalogue, can you make this product for me?
    A2:Our catalogue shows most of our products,but not all.So just let us know what product do you need,and how many do you want.If we do not have it,we can also design and make a new mould to produceit.For your reference,making a ordinary mould will take about 35-45days.

    Q3:Can you make customized products and customized packing?
    A3:Yes.We made a lot of customized products for our customer before.And we made many moulds for our customers alread.About customized packing,we can put your Logo or other info on the packing.There is no problem.Just have to point out that ,it will cause some additional cost.

    Q4:Can you provide samples ?
    Are the samples free ? A4:Yes,we can provide samples.But you have to pay for the shipping cos.If you need many items, or need more qty for each item,we will charge for the samples.

    Q5:Can I become an Agent / Dealer of ONPOW products?
    A5:Welcome! But please let me know your Country/Area fisrt,We will have a check and then talk about this.If you want any other kind of cooperation,do not hesitate to contact us.

    Q6:Do you have a guarantee of your product quality?
    A6:The button switches we produce all enjoy one-year quality problem replacement and ten-year quality problem repair service.
